Industrial Flat Panel Computer

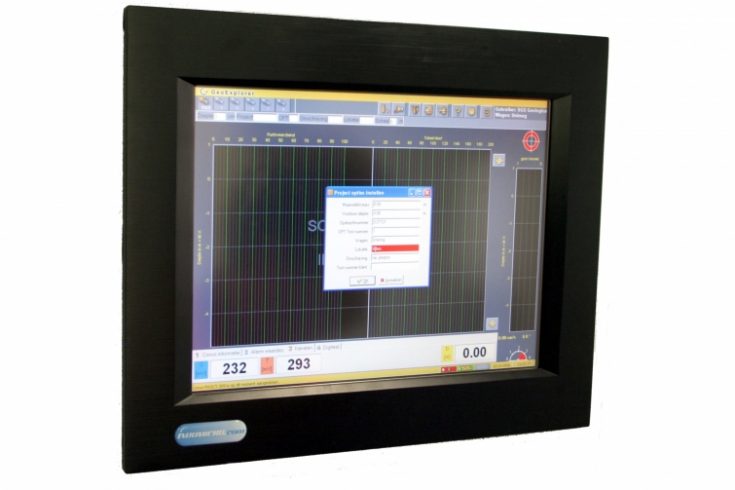

The industrial panel computer for CPT trucks and CPT crawlers is a rugged, compact panel-mount industrial fanless PC with a 15″ TFT LCD screen featuring touch screen.

It is powered by an Intel Celeron M processor and offers optimal heat dissipation and low-power consumption without sacrifice of speed performance.

This PC also features 2 PCI expansion slots, 3 COM ports, 2 USB 2.0 ports, and a slim CD-ROM drive. It provides 12/24VDC power input.

  • 15″ TFT display, 350 cd/m , 16.2M colors
  • Resolution: 1024 x 768
  • Viewing angle : 140º (H), 125º (V)
  • GFG touch screen
  • 6mm thick black painted steel front panel (NEMA 4 / IP65)
  • Fanless Intel Atom 1.6 GHz processor
  • 2 GB RAM (max. 2 GB)
  • 160 GB Industrial Hard Disk
  • 2 x GigabitLAN, 4 x USB, 2 x RS232, 1 x RS232/422/485, Audio in/out, VGA
  • CompactFlash slot
  • Power input: 11 ~ 32VDC
  • Dimensions: 410 mm (W) x 80 mm (D) x 310 mm (H)
  • Options: Solid State Disk, Stainless steel front panel

Please contact us for details.
