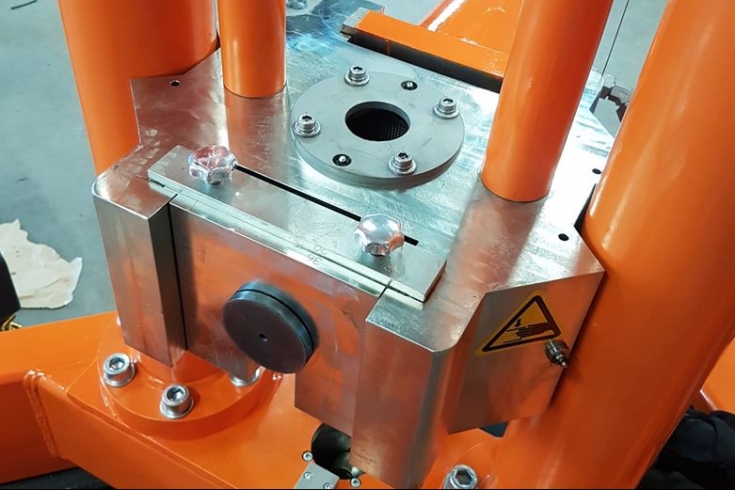

  • Hydraulic catching clamp integrated in the support beam

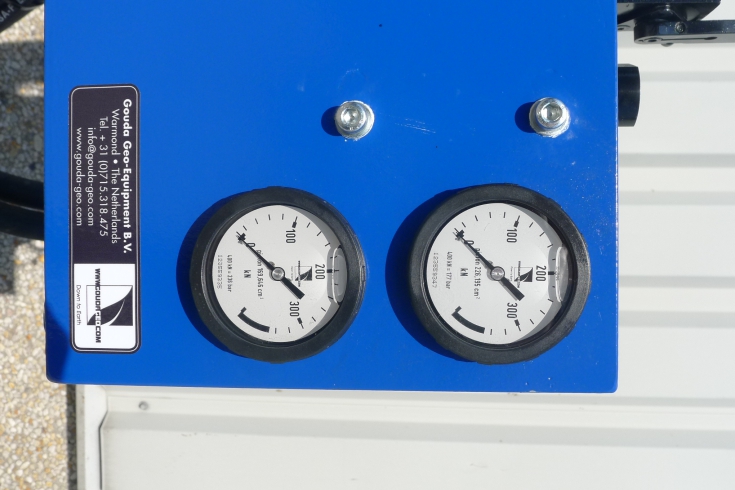

  • Pressure gauges indicating the pushing and pushing forces
  • 350 kN CPT platform for onshore testing
  • Electric-hydraulic power-pack
  • Electric-hydraulic power-pack

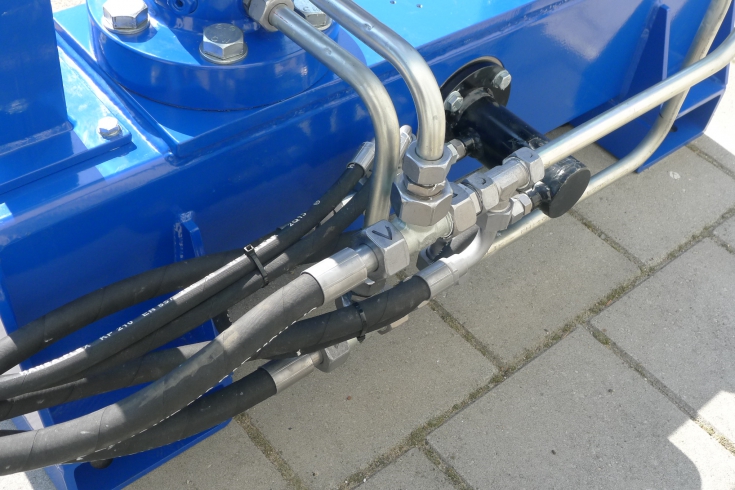

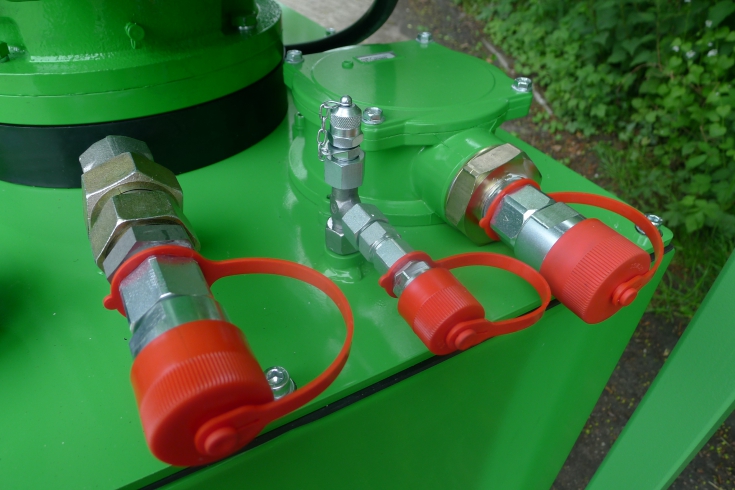

  • Leak free hydraulic couplings

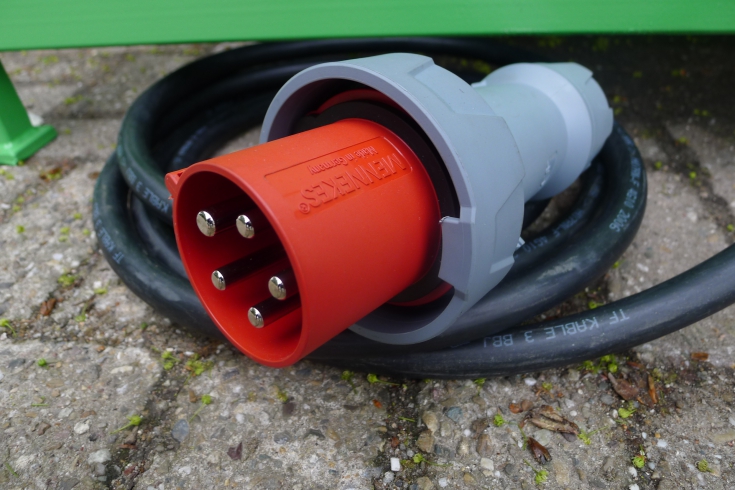

  • 5-pole connector

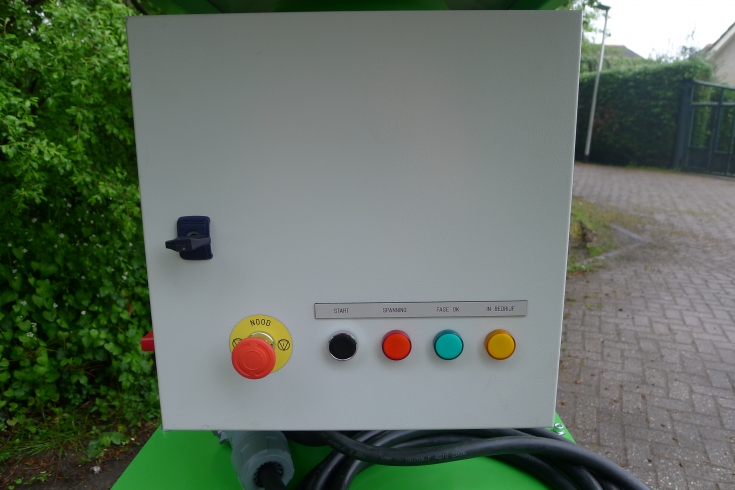

  • IP55 protected switch box

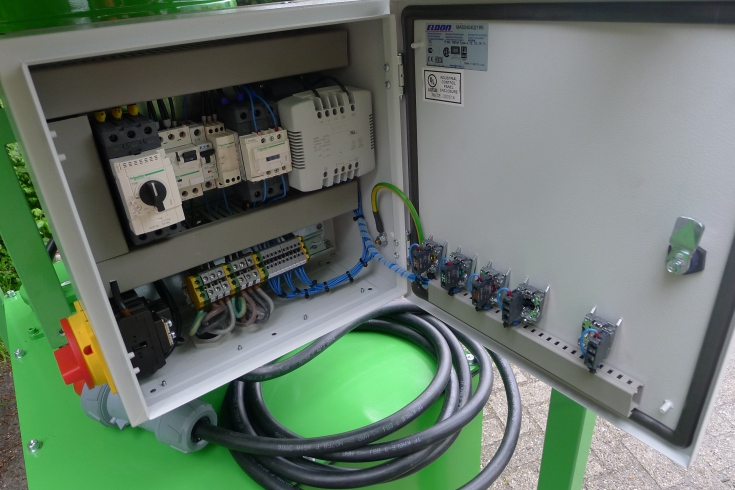

  • Interior of switch box
  • Electric-hydraulic power-pack
  • Electric-hydraulic power-pack
Gouda Geo-Equipment B.V.
Satellietbaan 8
2181 MH Hillegom
The Netherlands

Downloads

No downloads available

350 kN CPT Penetrometer Pusher for Nearshore Testing

Nearshore cone penetration testing is not as difficult as it might seem. In case of nearshore CPT (also referred to as over-water or marine CPT) the specifications of the equipment, the operation and the procedures to follow differ slightly from land testing. It is for reason recommendable to opt for a CPT penetrometer rig that has been purposely designed for this job.

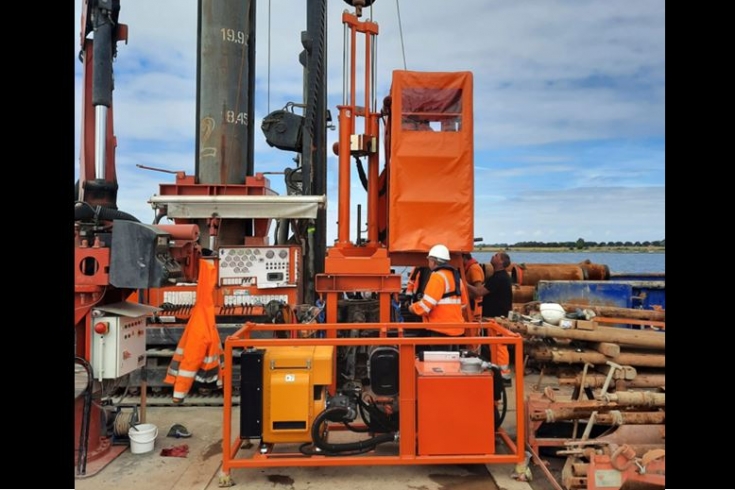

The 350 kN stand-alone CPT penetrometer set for nearshore testing is an economical rig with full CPT testing capabilities. It is because of its design and possible extra’s very suitable for cone penetration testing in relatively shallow waters, i.e. up to approx. 25 meter. The CPT set is suitable for both electrical and mechanical CPT testing, but in daily practice only used for electrical CPT.

The CPT penetrometer set comprises a 350 kN 2-cylinder CPT penetrometer pusher, a diesel-hydraulic or an electric-hydraulic power-pack with load-sensing pump, manually operated valves, mounting frame, stainless-steel housing for datalogger and computer, etc.


CPT Penetrometer Pusher

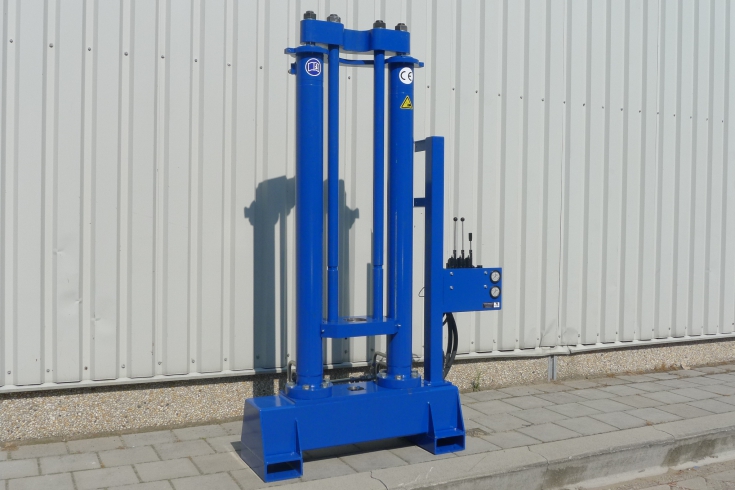

A hydraulic CPT penetrometer pusher with a pushing capacity of 350 kN, comprising 2 vertical hydraulic cylinders, simultaneously operated with a stroke of 1350 mm. A thrust block connects the two cylinders and is capable of driving and pulling the CPT sounding tubes and casing tubes into and out of the ground.

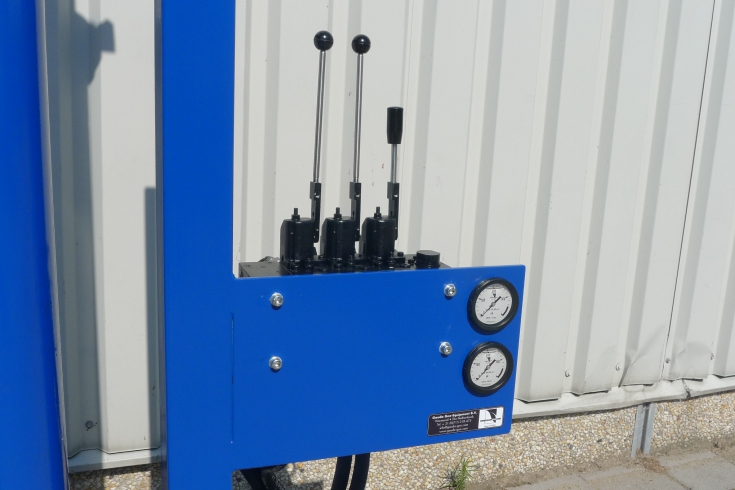

A hydraulic control unit, mounted on a console near the CPT penetrometer pusher, allows the operator to control all functions. The unit comes complete with a guiding tubes, to be applied between the penetrometer and ground level.

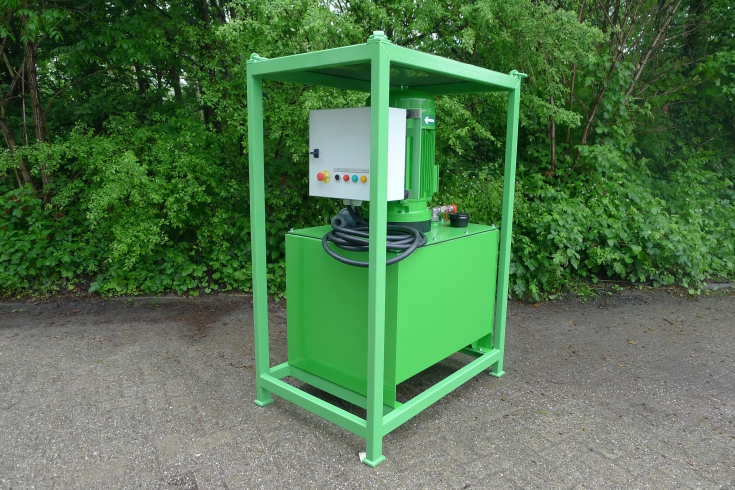

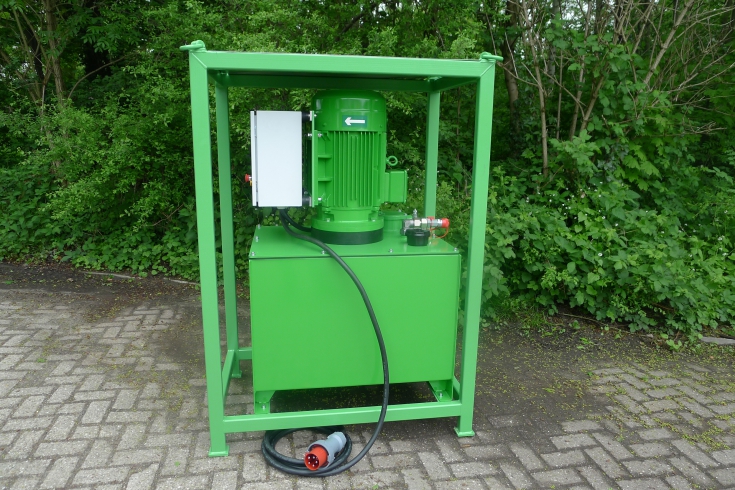

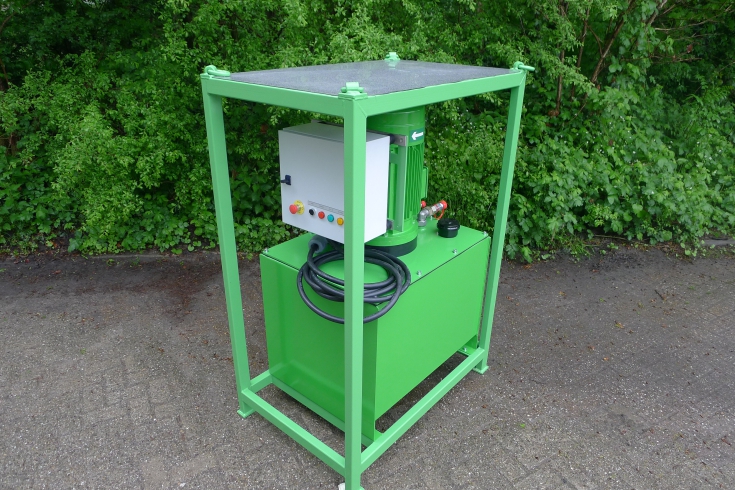

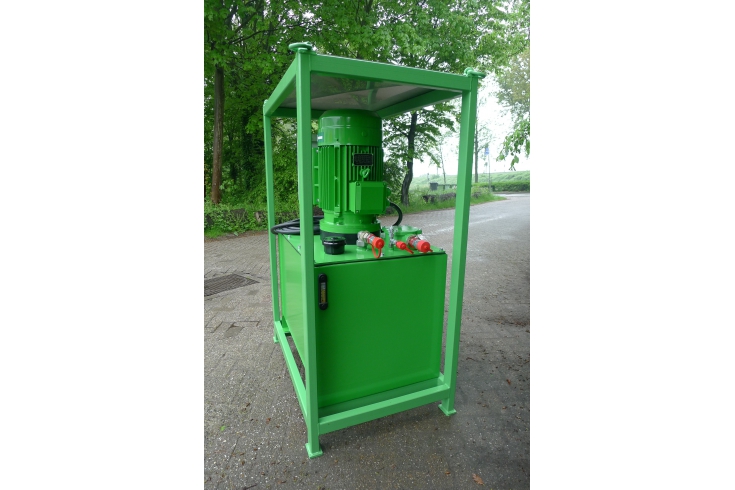

Electric-Hydraulic Power-Pack

The CPT penetrometer pusher will be powered by an electric-hydraulic power-pack. The power-pack comprises a powerful electric motor (22 kW) incorporated in the burry frame. The motor drives a Linde load-sensing pump. The power-pack features a phase sequence relay, which checks the correct direction of field rotation. When the green indicator light on the switch box lights up, the phase sequence is correct. Large hydraulic oil reservoir with effective 2-stage filtering system.


Optional Accessories

The 350 kN stand-alone CPT penetrometer set can be supplied with the following accessories and CPT equipment:


International Standards, Safety and CE Marking

The CPT penetrometer rig is designed and built in accordance with national and international standards and regulations. It complies with the provisions of the EC Directive 2006/42/EG and is provided with CE marking certifying that it meets EU consumer safety, health and environmental requirements.

The rig is equipped with a 350 kN CPT penetrometer pusher suitable to accommodate the measuring equipment for all kinds of Cone Penetration Tests with a maximum pushing force of 350 kN, such as: The Cone Penetration Tests can be performed according to international standards like ISO 22476-1, ISO 22476-12, NF P94-113, Eurocode 7, ISSMGE standard, ASTM D3441-05, ASTM D5778-12, ASTM D6067-96, ASTM D7400-08, and alike. This includes of course Class 1 piezocone CPTU tests and dissipation tests.

The operating procedures of the machine are described in detailed, easy-to-read and well-illustrated user manuals.
